SMC-5500 Slipform Paver New 15000kg with 3-Year Engine Warranty

제품 세부 정보

원래 장소: 중국 장수

브랜드 이름: Siming

지불 및 배송 조건

최소 주문 수량: 1

가격: US$234,000

최고의 가격을 얻으십시오

제품 세부 정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMC-5500 slipform paver with warranty, 15000kg slipform paver new, slipform paver 3-year engine warranty


무게:	15000 KG	포장 높이:	0-1800mm
포장 폭:	0-2500mm	구동 속도:	0-33m/분
포장 속도:	0-8m/min	평탄:	± 3 mm/3m
진동기 브랜드:	와이코	진동기 인터페이스:	8
진동기 주파수:	0-167 HZ	연료 탱크:	230L (표준)+120L (선택 사항)
수조:	500L	엔진:	Shangchai SC4H160G4
속도 전력:	118kw/2200rpm	배출 표준:	위상 ⅳ
수송 사이즈:	700022502860 mm

무게:	15000 KG
포장 높이:	0-1800mm
포장 폭:	0-2500mm
구동 속도:	0-33m/분
포장 속도:	0-8m/min
평탄:	± 3 mm/3m
진동기 브랜드:	와이코
진동기 인터페이스:	8
진동기 주파수:	0-167 HZ
연료 탱크:	230L (표준)+120L (선택 사항)
수조:	500L
엔진:	Shangchai SC4H160G4
속도 전력:	118kw/2200rpm
배출 표준:	위상 ⅳ
수송 사이즈:	700022502860 mm

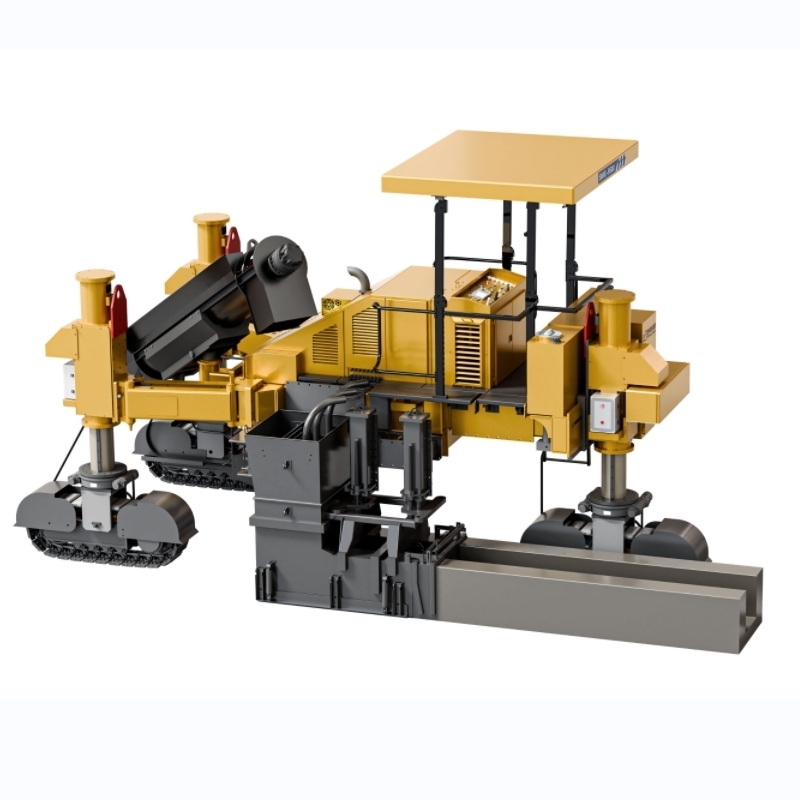

SMC-5500 Slipform Paver New 15000kg with 3-Year Engine Warranty

SMC-5500 Intelligent Slipform Paver

New condition core component engine with three tracks concrete spreader designed for professional construction applications.

Key Specifications

Attribute	Value
Core Components	Engine, hydraulic pump, vibrating spear
Weight	15000 kg
Warranty	1 Year (3 years for core components)
Unique Feature	Short turning radius
Paving Dimensions	Height: 0-1800mm, Width: 0-2500mm
Speed	Driving: 0-33 m/min, Paving: 0-8m/min
Applicable Industries	Highway, Tunnel roadbed, Ditch construction

Application Conditions

Designed for various construction fields including:

Highway and municipal road construction: curb, central isolation belt, anti-collision wall, slope protection, drainage ditch, cement pavement
Railway construction: retaining wall, drainage ditch
Agriculture and water conservancy: anti-seepage channels, slope protection and pavement hardening

Paving width

0-2500 mm

Paving height

0-1800mm

Flatness

±3 mm/3m

Engine

Shangchai SC4H160G4 (118Kw/2200rpm, Phase IV emission standard)

Transport dimensions

7000*2250*2860 mm

Functional Features

Optimized operator platform: Clear layout with rapid control response for efficient operation
Energy efficient system: Eco mode automatically matches optimal working state for reduced emissions
High-performance vibration: WYCo square shell vibrator with 8 vibration oil roads (expandable to 10)
Precision control: International brand servo valve for smooth column lifting and excellent flatness
Flexible track system: Adjustable crawler columns with swing arms for mold position flexibility
Multiple steering modes: Forward, crab, cooperative and spot steering for superior maneuverability
Large-angle track rotation: ±130° steering angle for efficient positioning and transitions
Smooth operation: High-speed ratio reducer with international brand hydraulic motor
Compact transport: Electrically foldable roof for economical truck transportation
