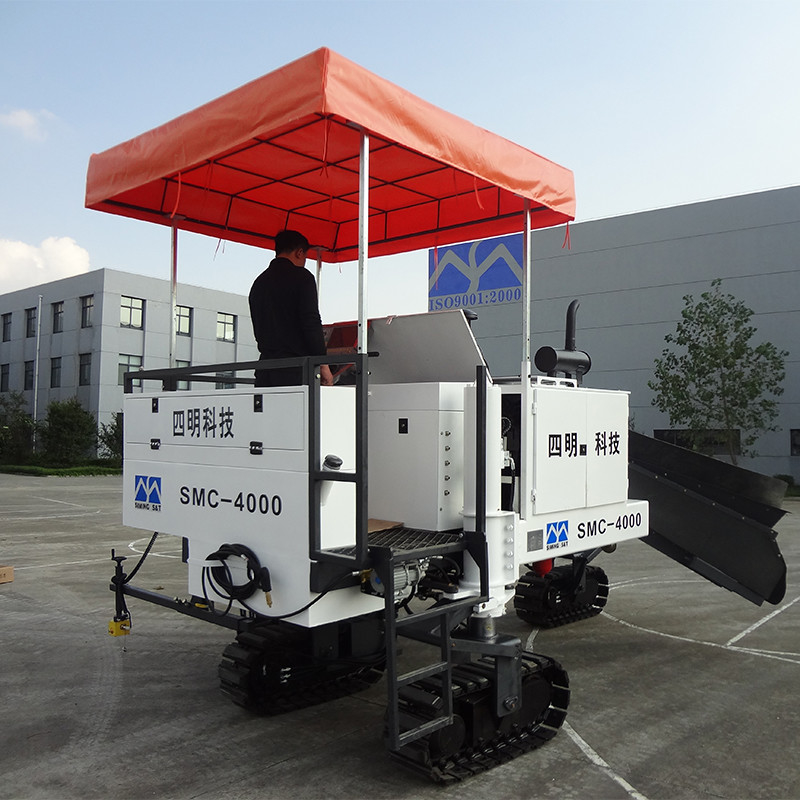

SMC-4000 Slipform Paver: Redefine Your Paving Efficiency in Curbstone & Road Construction

Name: SMC-4000 Slipform Paver: Redefine Your Paving Efficiency in Curbstone & Road Construction
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-4000
Availability: InStock

제품 세부 정보

원래 장소: 중국 장수

브랜드 이름: SIMING

인증: ISO9001/CE

모델 번호: SMC-4000

지불 및 배송 조건

최소 주문 수량: 1개 단위

포장 세부 사항: 컨테이너 운송

배달 시간: 15-20 근무일

최고의 가격을 얻으십시오

제품 세부 정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                SMC-4000 slipform paver for curbstones, concrete slip form paver for road construction, efficient paving machine with warranty


포장 폭:	200mm	포장 높이:	900mm
모델:	맞춤형	포장 속도:	0-12 Ｍ / 분
여행 속도:	0-45M/분	전체 치수:	5000 x 2160 x 2550mm
상태:	새로운

포장 폭:	200mm
포장 높이:	900mm
모델:	맞춤형
포장 속도:	0-12 Ｍ / 분
여행 속도:	0-45M/분
전체 치수:	5000 x 2160 x 2550mm
상태:	새로운

SMC-4000 Slipform Paver: Redefine Your Paving Efficiency in Curbstone & Road Construction

Breakthrough in Paving Technology

The SMC-4000 Slipform Paver revolutionizes road construction equipment. Designed for curbstones, road shoulders, and slope protection projects, this fully hydraulic, electronically controlled paver features three-track walking/steering technology for unmatched driving power, agile steering, and exceptional construction efficiency in all terrain conditions.

Core Competencies That Stand Out

Smart CAN Bus Control: Industrial-grade CAN bus communication links control panel and main controller for seamless operation and system reliability
Intelligent LCD Monitoring: Wide-screen LCD display provides real-time machine status and fault alerts for efficient on-site management
Hydraulic Precision Engineering: Full hydraulic track drive with offset mold technology reduces positioning time before pouring
Adaptive Feeding System: Rotatable, tiltable feeding screw/belt adapts to diverse material flows for enhanced efficiency
Eco-Friendly Hydraulic Power: Imported load-sensitive variable pump with premium components minimizes energy waste
Auto-Leveling & Steering: Automatic leveling ensures flat paving surfaces while auto-steering maintains precise linearity
Rapid-Clean Flushing System: High-pressure water pump cleans entire system quickly between projects

Technical Parameters

No.	Project	Unit	Parameter
1	Engine	/	Cummins QSF2.8/Quanjiao QC4102G or others
2	Hydraulic vibration	/	5-way vibrating oil circuit, standard configuration of 2 vibrating rods
3	Paving speed	m/min	0～12
4	Driving speed	m/min	0～45
5	Paving Radius	cm	60
6	Paving size	cm	Curb stone width 200*height 90
7	Host weight	kg	5500
8	Shipping size(LWH)	mm	500021602550

Construction Case

From arid desert curbstones to rugged mountain slope protections, from urban road shoulder upgrades to bridge-side precision paving, the SMC-4000 has proven its adaptability, durability, and consistent high performance in diverse terrains worldwide.
